Introduction

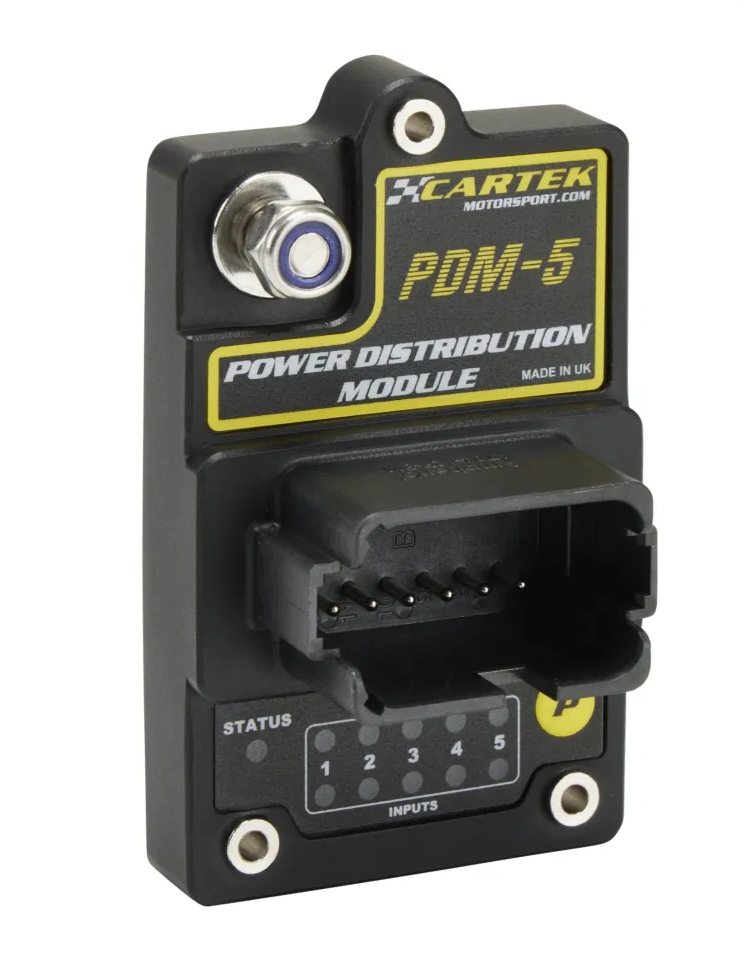

The new ‘mini’ Power Distribution Modules from CARTEK have been designed to replace fuses and relays therefore simplifying the vehicles wiring. These mini Power Distribution Modules can be used as expansion units for larger PDM’s or can be used separately.
Key Features
- Small, lightweight, robust design – just 110g.
- Fully potted for protection from water and dirt, shock and vibration.
- All connections via sealed 12 pin Deutsch DT connector.
- Maximum output current can be configured in 5A steps (20A max) per channel. Selectable ‘Soft Start’ option for driving devices with high inrush such as fans or pumps. Outputs can be combined for higher current.
- Tripped outputs can be reset by either performing a power cycle or by pressing the button on the PDM device.
- Control inputs can be configured for high or low level signal activation, rising edge or falling edge triggers, or PWM input signals (200hz max).
- Outputs have selectable functions including Flashing (for indicators), Time delay On (for heated screens etc), Time delay Off (to operate fans when car is switched off).
- PDM’s have a configurable ‘Aux’ Input pin that can act as an Ignition input e.g. signal from Battery Isolator, master switch or ignition switch.

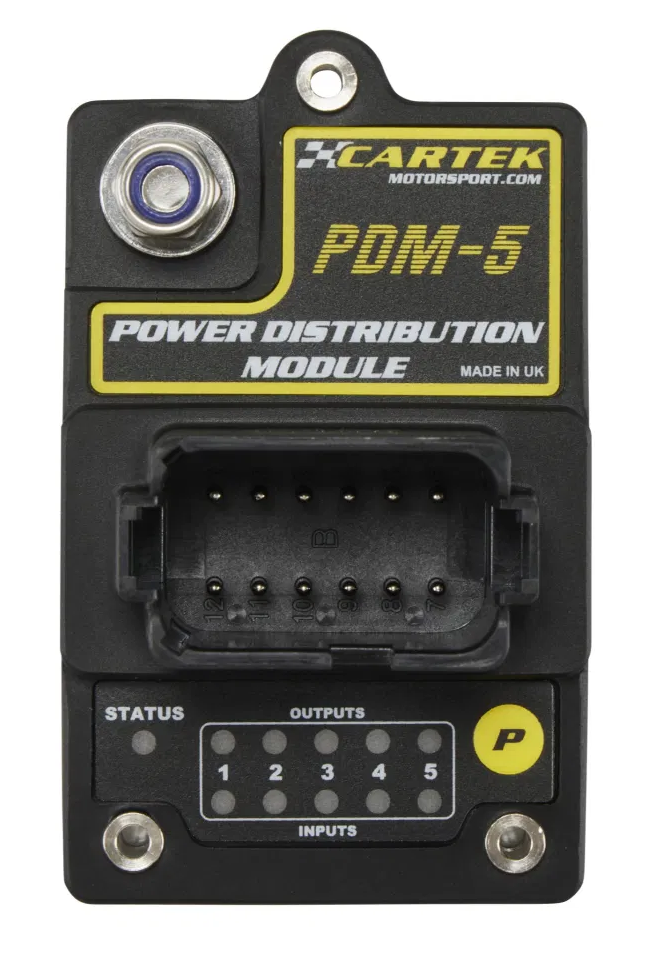

- RGB status LED’s on PDM indicate status of Inputs and Outputs.
- PDM-05 can be configured to become a dedicated Headlight or Spot Lamp controller.
- All programming is through integrated pushbutton on PDM – no laptop required.

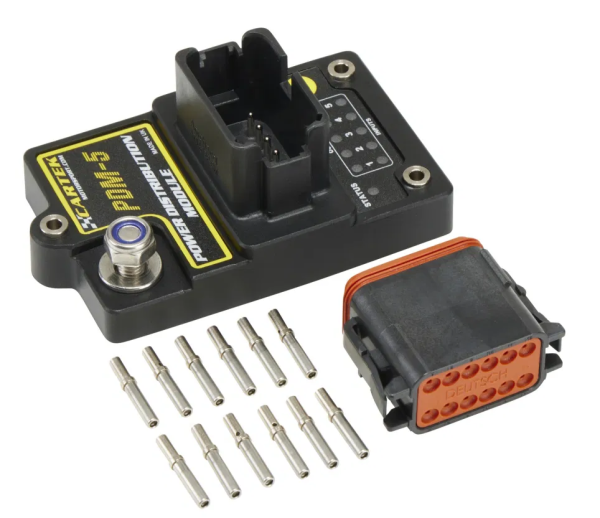

Kit Contents
1 x PDM (CK-PDM-4C)
1 x DTM Connector with solid contacts
Link to user manual
